TapMap

Latest version platforms Docker Pulls License

TapMap demo

Watch your computer connect across the internet in real time. Discover the world behind your apps.

Runs locally. No telemetry. Docker supported on Linux.

TapMap inspects local socket data, enriches IP addresses with geolocation, and visualizes the locations on an interactive map.

It is an awareness tool, not a firewall or a full security suite. It makes network activity visible and easy to explore.

Quick start

Download and run (Windows, Linux, macOS)

Download from Releases: https://github.com/olalie/tapmap/releases

Extract and run:

./tapmap

On Windows:

tapmap.exe

Note: Windows and macOS may show a security warning the first time you run TapMap. See below for how to allow the application.

Docker (Linux host only)

docker run --rm \
--network host \
--pid host \
-v ~/tapmap-data:/data \
-e TAPMAP_IN_DOCKER=1 \
olalie/tapmap:latest

New: Insights

TapMap tracks activity over the last 30 days and highlights what is unusual and what is most frequent.

  • New apps, services (ASN), countries, and ports
  • Frequent activity (Top 5+, including ties)
  • Click countries to zoom and inspect on the map

While the map is limited to connections in the current session, insights are based on activity observed over time.

To build a complete 30-day history, keep TapMap running while your system is in use. Running it at startup is recommended.

Why TapMap

Your computer connects to many systems without you noticing.

TapMap makes this visible so you can:

  • See where connections go
  • Notice when something new appears
  • Understand what is normal over time
  • Explore connections with hover and click

What TapMap shows

  • Services your computer connects to
  • Their approximate locations on a world map
  • Nearby locations highlighted visually
  • Insights panel showing new and frequent activity over time
  • Unmapped public services with missing geolocation
  • Established LAN and LOCAL services
  • Local open ports (TCP LISTEN and UDP bound)

All data is collected locally on your machine.

How it works

TapMap follows a simple local pipeline:

socket scan → IP extraction → GeoIP lookup → map rendering

It uses:

  • psutil (Windows and Linux) or lsof (macOS) to read active network connections
  • MaxMind GeoLite2 databases for IP geolocation
  • Dash and Plotly to render an interactive world map

How to use

  • Hover map markers for a summary
  • Click map markers for detailed information
  • Click countries in Insights to zoom to the location

Documentation

Full documentation, including API reference and platform behavior notes:

https://olalie.github.io/tapmap/

Installation

Download the latest executable from the Releases page

Available builds:

  • Windows (zip)
  • Linux (zip)
  • macOS (zip)

Tested on Windows 11, Ubuntu, and macOS (Apple Silicon).

No installation required. Download, extract, and run the executable.

Start TapMap:

./tapmap

On Windows, double-click tapmap.exe.

On Linux, you may need:

chmod +x tapmap

Platform notes:

  • Linux uses xdg-open for the Open data folder action
  • macOS uses open

Command line

tapmap --help

tapmap --version
tapmap -v

Windows SmartScreen

Windows may show a SmartScreen warning the first time you run TapMap.
This is normal for new applications that are not digitally signed.

To start the program:

  1. Click More info.
  2. Click Run anyway.

macOS security warning

macOS may block the app the first time you run TapMap. This is normal for unsigned applications.

To start the program:

  1. Try to open the app.
  2. Open System Settings → Privacy & Security.
  3. Click Open anyway for TapMap.

You may be asked to confirm once more.

Alternatively, you can remove the warning using Terminal:

xattr -d com.apple.quarantine tapmap

How it runs

TapMap runs locally and opens in your browser:

http://127.0.0.1:8050/

If it does not open automatically, enter the address manually.

The default port is defined by SERVER_PORT in config.py.

The port can be overridden using the environment variable TAPMAP_PORT.

Examples:

Linux / macOS:

TAPMAP_PORT=8060 python -m tapmap
TAPMAP_PORT=8060 tapmap

PowerShell:

$env:TAPMAP_PORT="8060"
python -m tapmap

GeoIP databases (required for map locations)

TapMap uses local MaxMind GeoLite2 databases for geolocation.
The databases are not included in the download.

TapMap works without these files, but map locations will not be displayed.

Required files:

  • GeoLite2-City.mmdb
  • GeoLite2-ASN.mmdb

Download (free, account required): https://dev.maxmind.com/geoip/geolite2-free-geolocation-data

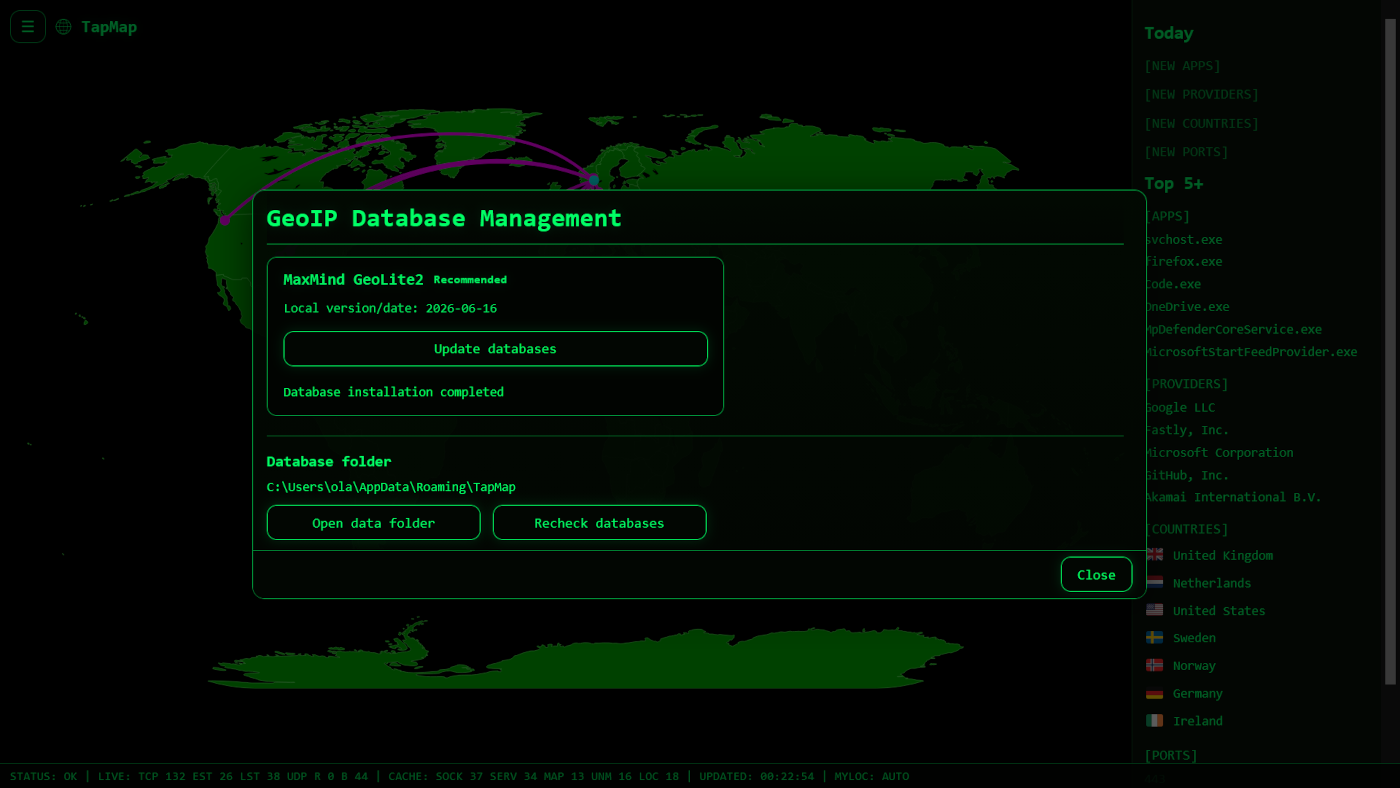

After downloading:

  1. Start TapMap.
  2. Follow the setup window to open the data folder.
  3. Copy the .mmdb files into that folder.
  4. Click Recheck GeoIP databases.

Update recommendation: download updated databases regularly, for example monthly.
Redistribution is subject to the MaxMind license terms.

Interface

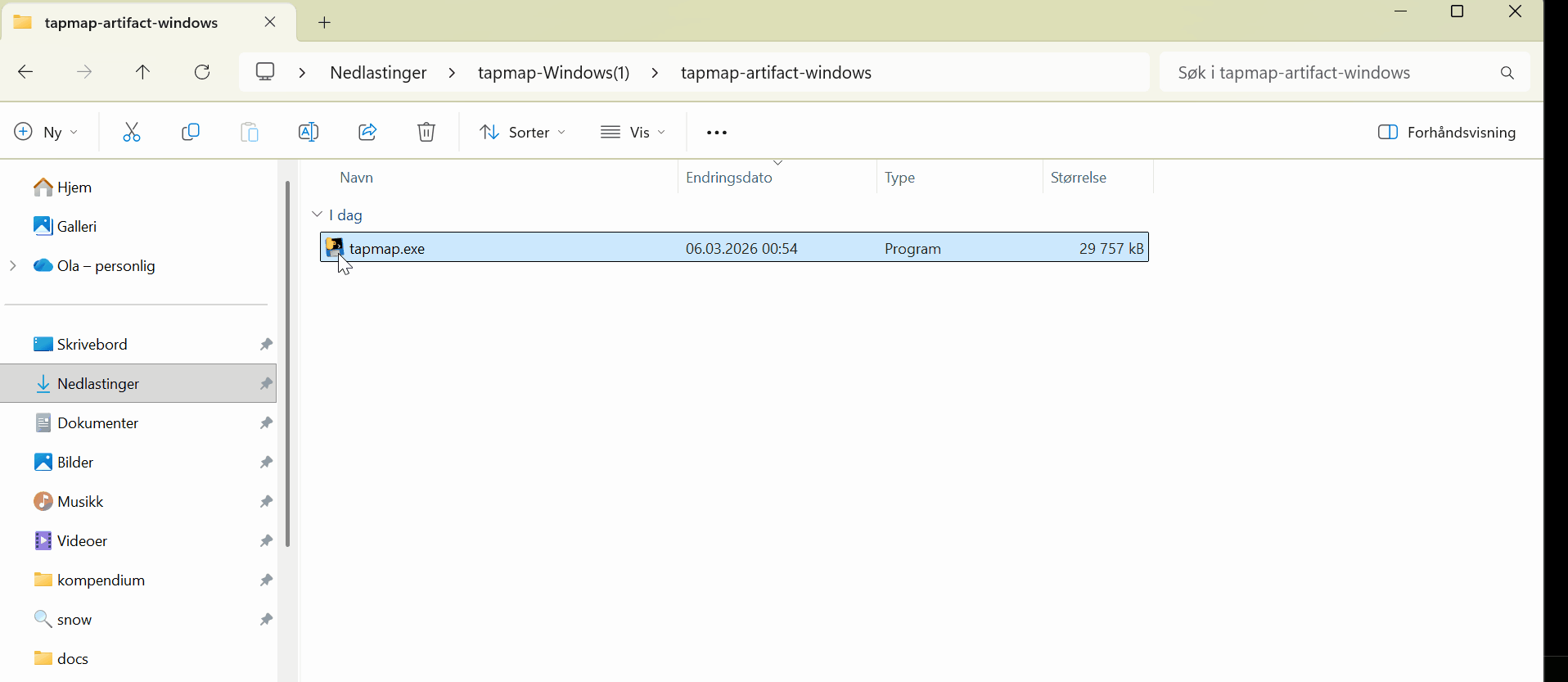

TapMap features

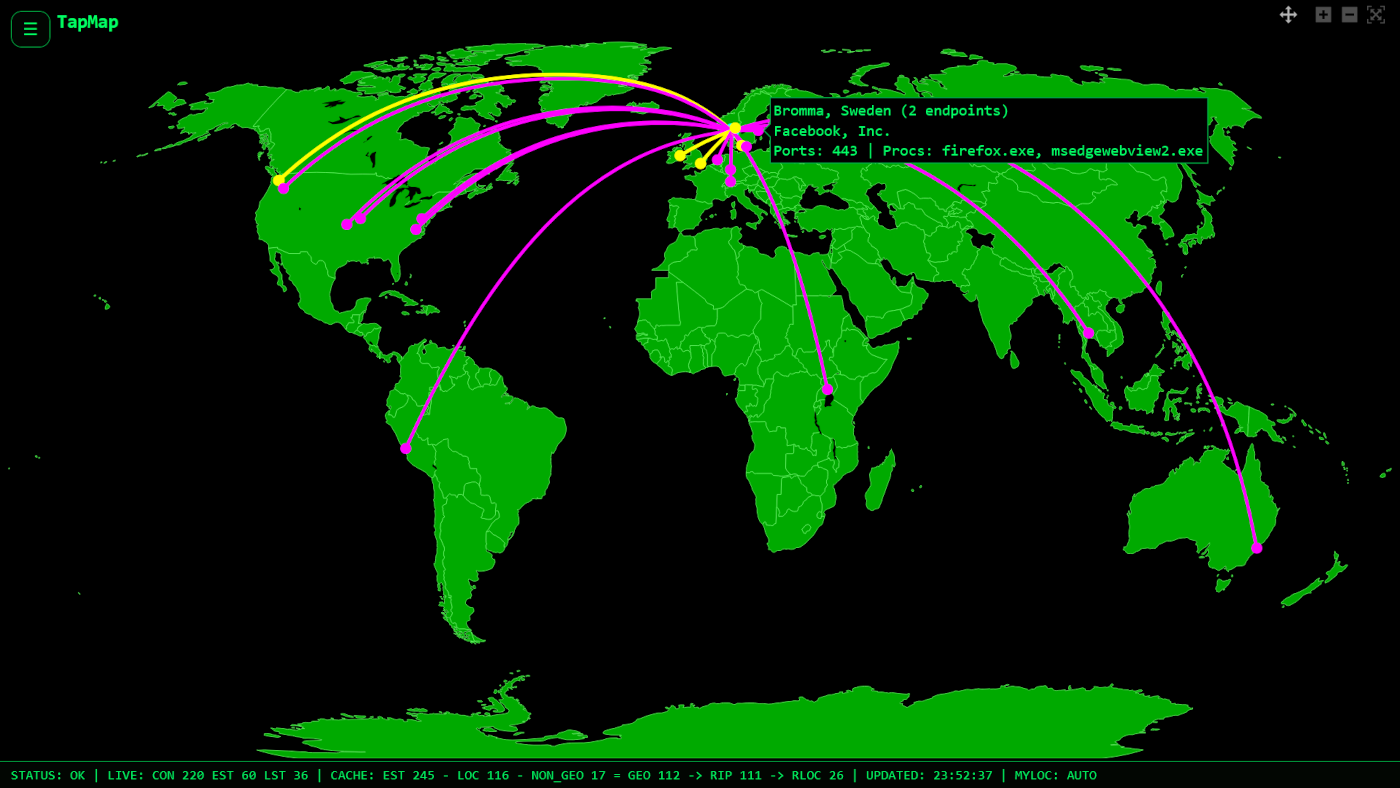

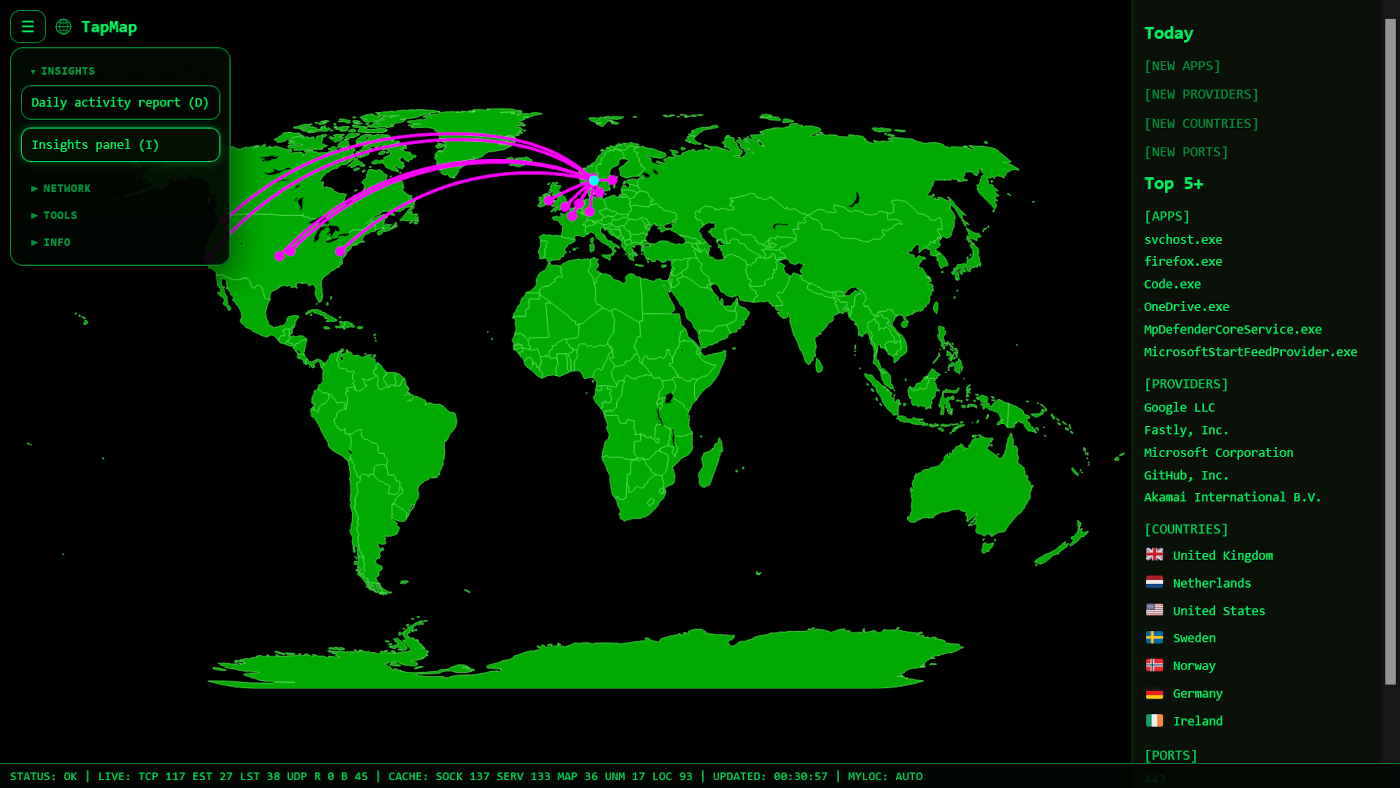

Main view

Main view

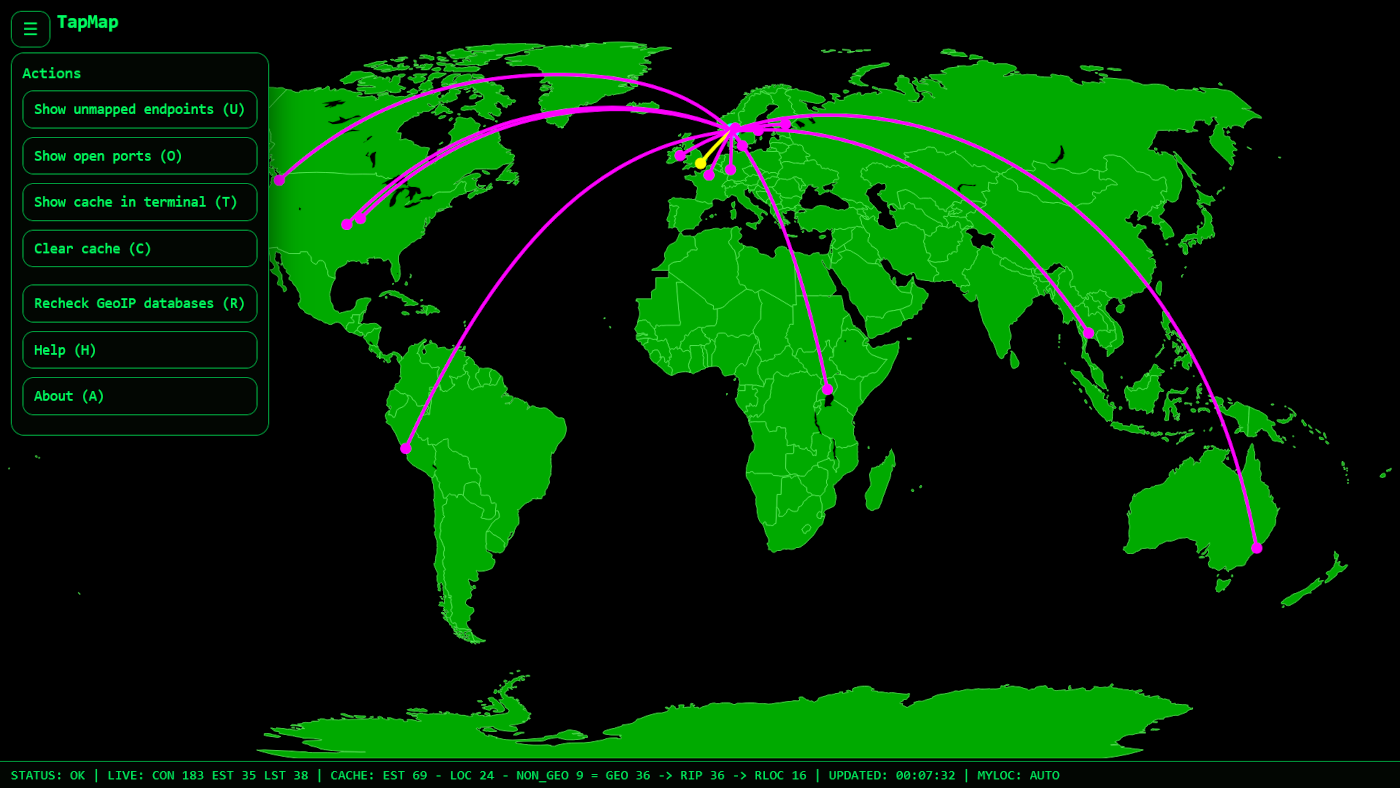

Actions menu

Actions menu

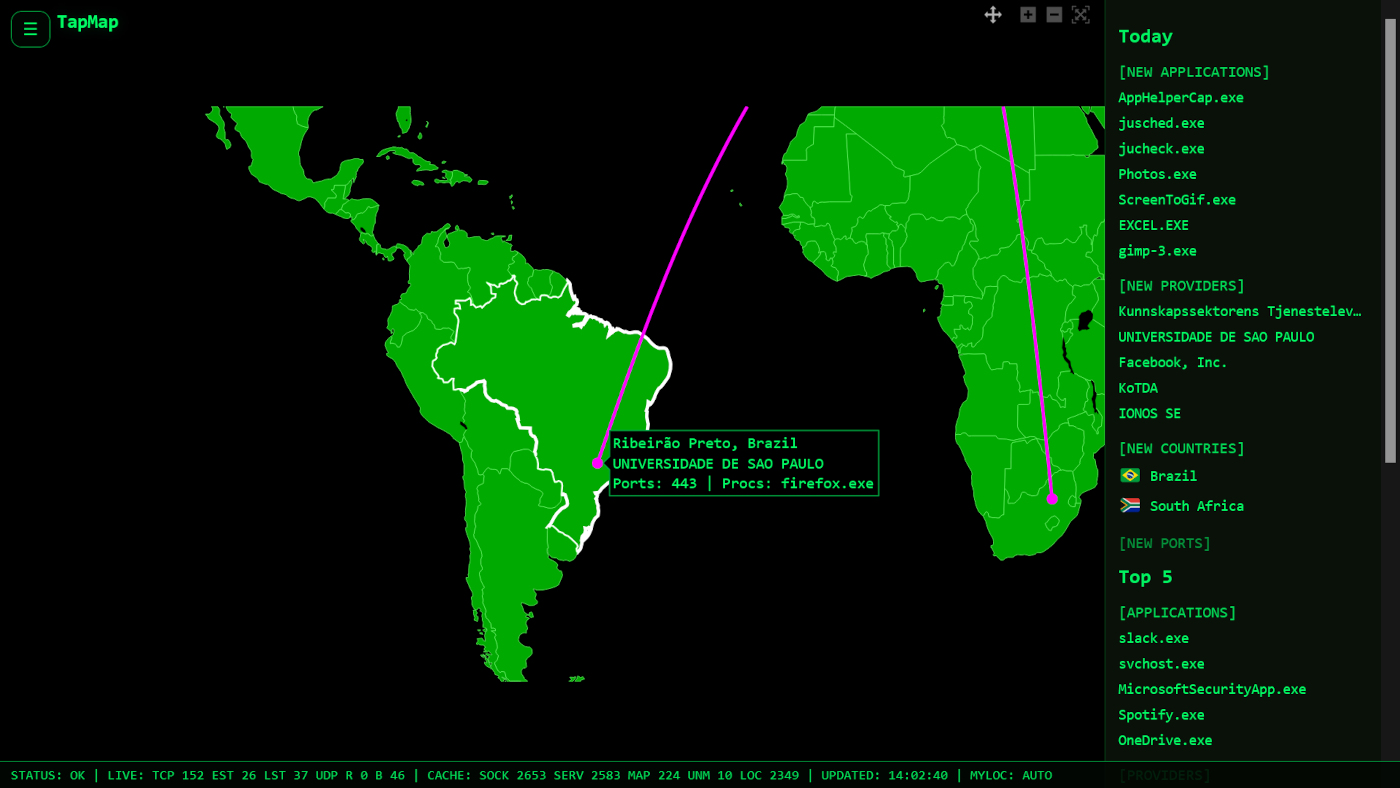

Insights panel

Insights panel

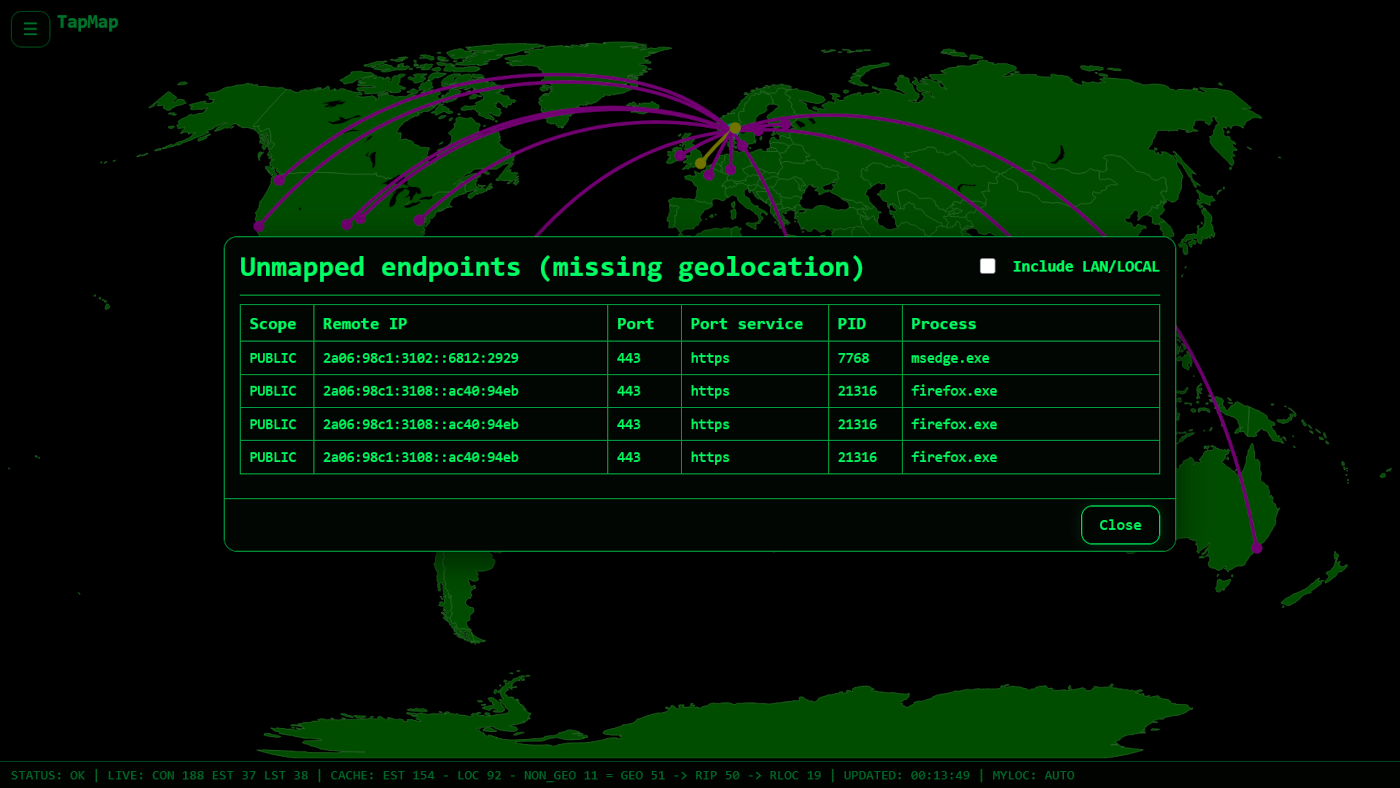

Unmapped services

Unmapped services

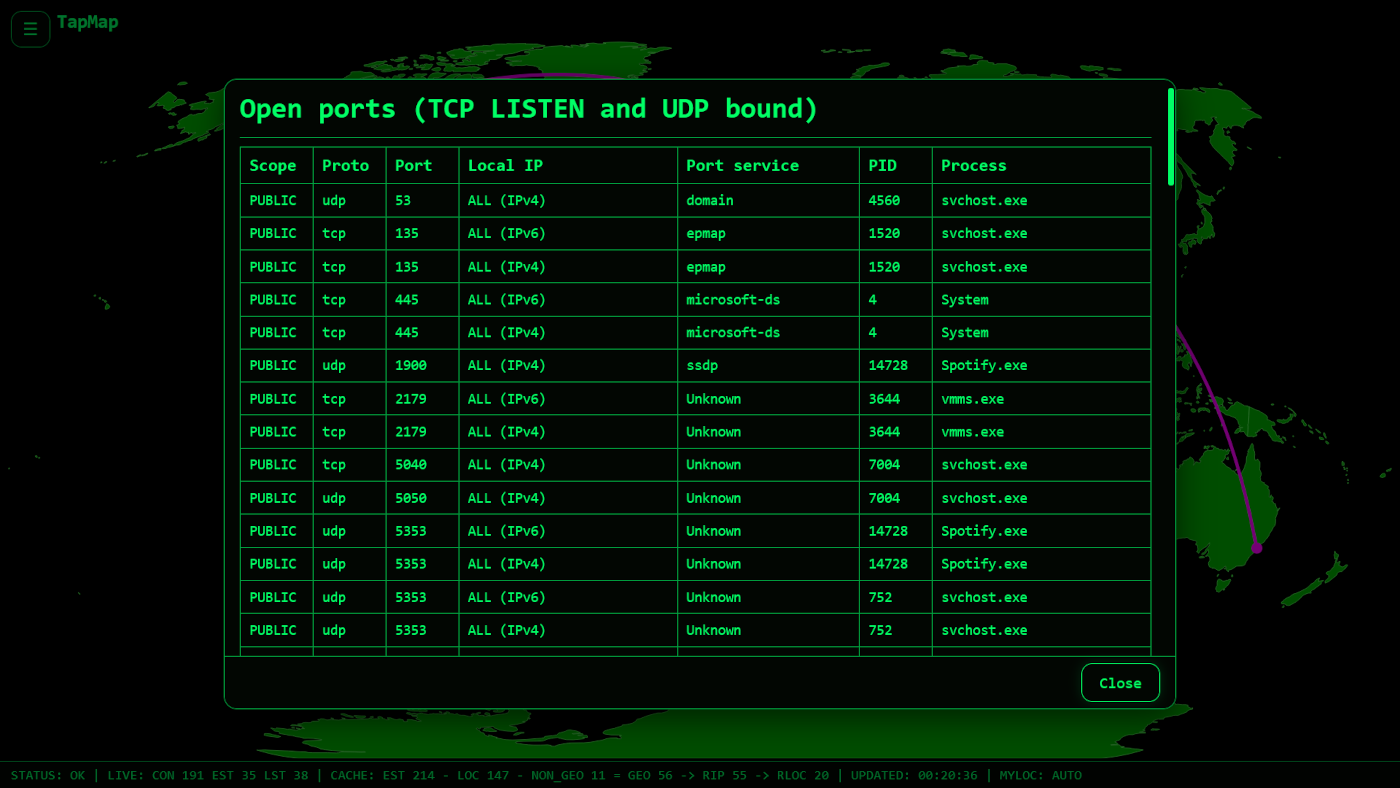

Open ports

Open ports

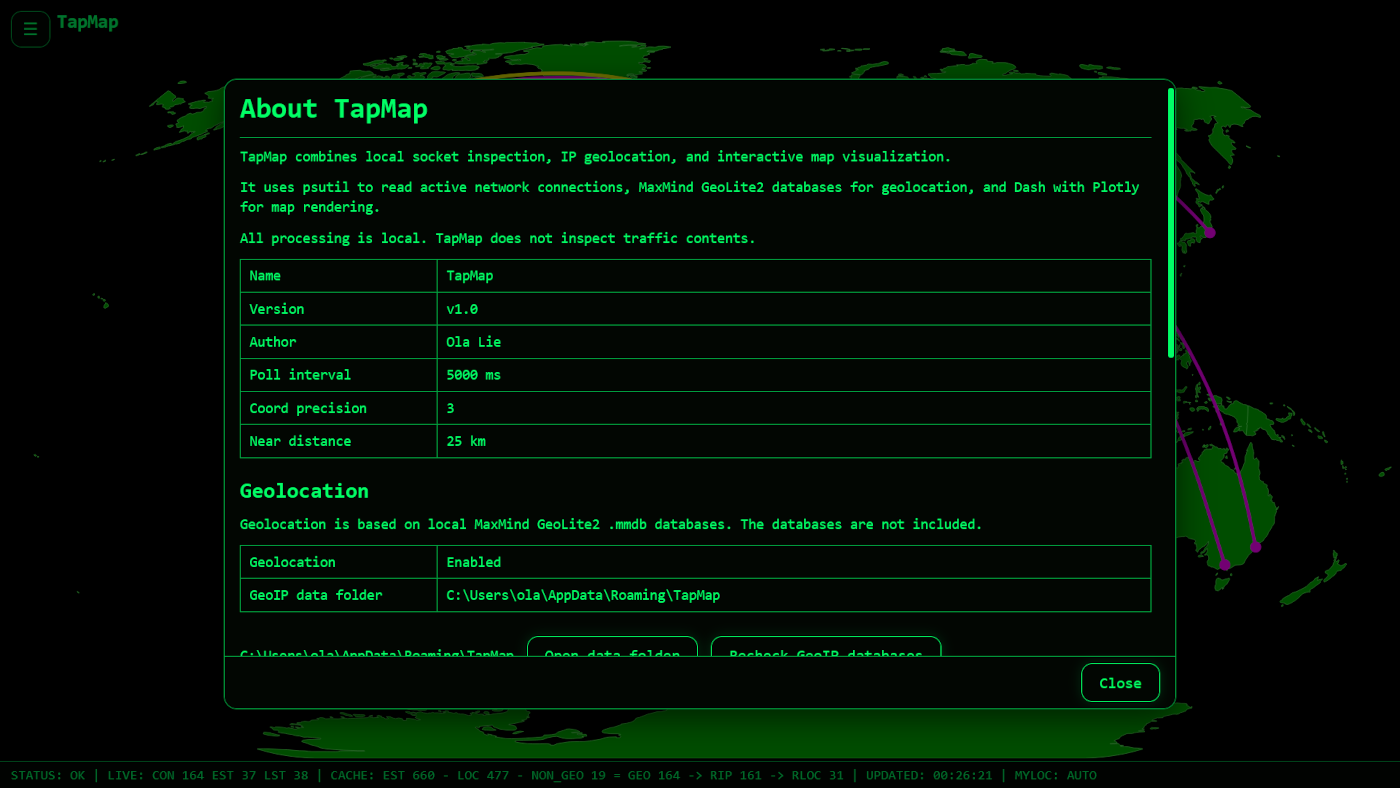

About

About

Keyboard controls

Key Action
I Toggle Insights panel
U Unmapped public services
L Established LAN/LOCAL services
O Open ports
T Show cache in terminal
C Clear cache
R Recheck GeoIP databases
H Help
A About
ESC Close window

Privacy

  • TapMap runs locally.
  • No connection data is sent anywhere.
  • Geolocation uses local MaxMind databases.
  • If MY_LOCATION = "auto", TapMap makes a small request to detect your public IP.

Configuration

TapMap reads settings from config.py.

Common settings:

  • SERVER_PORT
  • MY_LOCATION
  • POLL_INTERVAL_MS
  • COORD_PRECISION
  • ZOOM_NEAR_KM

SERVER_PORT defines the default port used by the local Dash server.

The port can be overridden at runtime using the environment variable TAPMAP_PORT.

Build from source

TapMap uses a src-layout and must be installed before running.

Requirements:

  • Python 3.10+

Create virtual environment:

python -m venv .venv

Activate:

source .venv/bin/activate   (Linux/macOS)
.venv\Scripts\activate      (Windows)

Install dependencies and package:

pip install -r requirements.txt
pip install -e .

Run (development mode):

python -m tapmap

Run tests:

pytest

Build executable (optional)

Build a standalone executable using PyInstaller:

python tools/build.py

Output:

  • Linux/macOS: dist/tapmap
  • Windows: dist/tapmap.exe

Run:

./dist/tapmap      (Linux/macOS)
dist\tapmap.exe    (Windows)

Note:

The executable must be built on the target operating system.

Docker (Linux)

TapMap can run in Docker on Linux hosts.

Requirements

  • Linux host
  • Docker installed
  • GeoLite2 .mmdb files

Setup

Place the GeoLite2 database files in:

docker-data/

Run

docker compose -f compose.linux.yaml up --build

The server binds to 0.0.0.0 by default in Docker.

Override in compose if needed:

TAPMAP_HOST: "127.0.0.1"
TAPMAP_PORT: "8060"

Open in browser on the host:

http://127.0.0.1:8050 (default)

If you override TAPMAP_PORT, use that port instead.

If you access the app from another machine, use the host IP address instead.

Notes

  • Docker provides full TCP and UDP socket data
  • Process information may be unavailable in Docker mode, depending on host security policies
  • Requires Linux host (not supported on Docker Desktop for Windows or macOS)

Process visibility in Docker depends on host security policies.

On Ubuntu with the default Docker AppArmor profile (docker-default), SYS_PTRACE alone was not sufficient.

In this setup, process names became available with:

--cap-add=SYS_PTRACE
--security-opt apparmor=unconfined

Behavior may vary across systems.

Docker Hub

TapMap can run directly from Docker Hub without cloning the repository.

Setup

Create a local data folder:

mkdir -p ~/tapmap-data

Place the GeoLite2 database files in that folder:

  • GeoLite2-City.mmdb
  • GeoLite2-ASN.mmdb

Run

docker run --rm \
--network host \
--pid host \
-v ~/tapmap-data:/data \
-e TAPMAP_IN_DOCKER=1 \
olalie/tapmap:latest

The server binds to 0.0.0.0 by default in Docker.

To override the bind address or port:

-e TAPMAP_HOST=127.0.0.1
-e TAPMAP_PORT=8060

Open in browser on the host:

http://127.0.0.1:8050 (default)

If you override TAPMAP_PORT, use that port instead.

If you access the app from another machine, use the host IP address instead.

Notes

  • The mounted folder is used as the container data directory (/data)
  • The host folder name can be chosen freely
  • Process information may be unavailable in Docker mode, depending on host security policies
  • Requires Linux host (not supported on Docker Desktop for Windows or macOS)

Support the project

TapMap is free and open source.

If you find it useful, consider supporting the project:

  • https://www.buymeacoffee.com/olalie
  • https://www.paypal.com/donate/?hosted_button_id=ELLXBK9BY8EDU

You can also give the project a star on GitHub.

License

MIT License

Acknowledgements

Thanks to @faxotherapy for reporting macOS compatibility issues and testing Intel builds.
Thanks to @nafarinha for confirming architecture support and validating macOS behavior.

Thanks to @totti4ever for reporting Docker multi-arch issues and confirming the fix on arm64.
Thanks to @khadanja for suggesting a Docker-based workaround.

Thanks to @TechnVision for raising the configurable port use case.
Thanks to @desrod for suggesting a solution for configurable port support.
Thanks to @hugalafutro for suggesting optional SYS_PTRACE support for process visibility on Linux.
